Wabash Steel Flatbeds
More Flexibility. Longer Life.
With some of the highest floor ratings in the industry, this trailer design offers exceptional load flexibility. The main beam provides a stronger web-to-flange attachment for long-life performance, and potential corrosion is eliminated by welding the high-tensile steel at all flange-web joints. In addition, the “K”-type structural assembly reduces side bending and increases durability.
Less Maintenance. More Uptime.

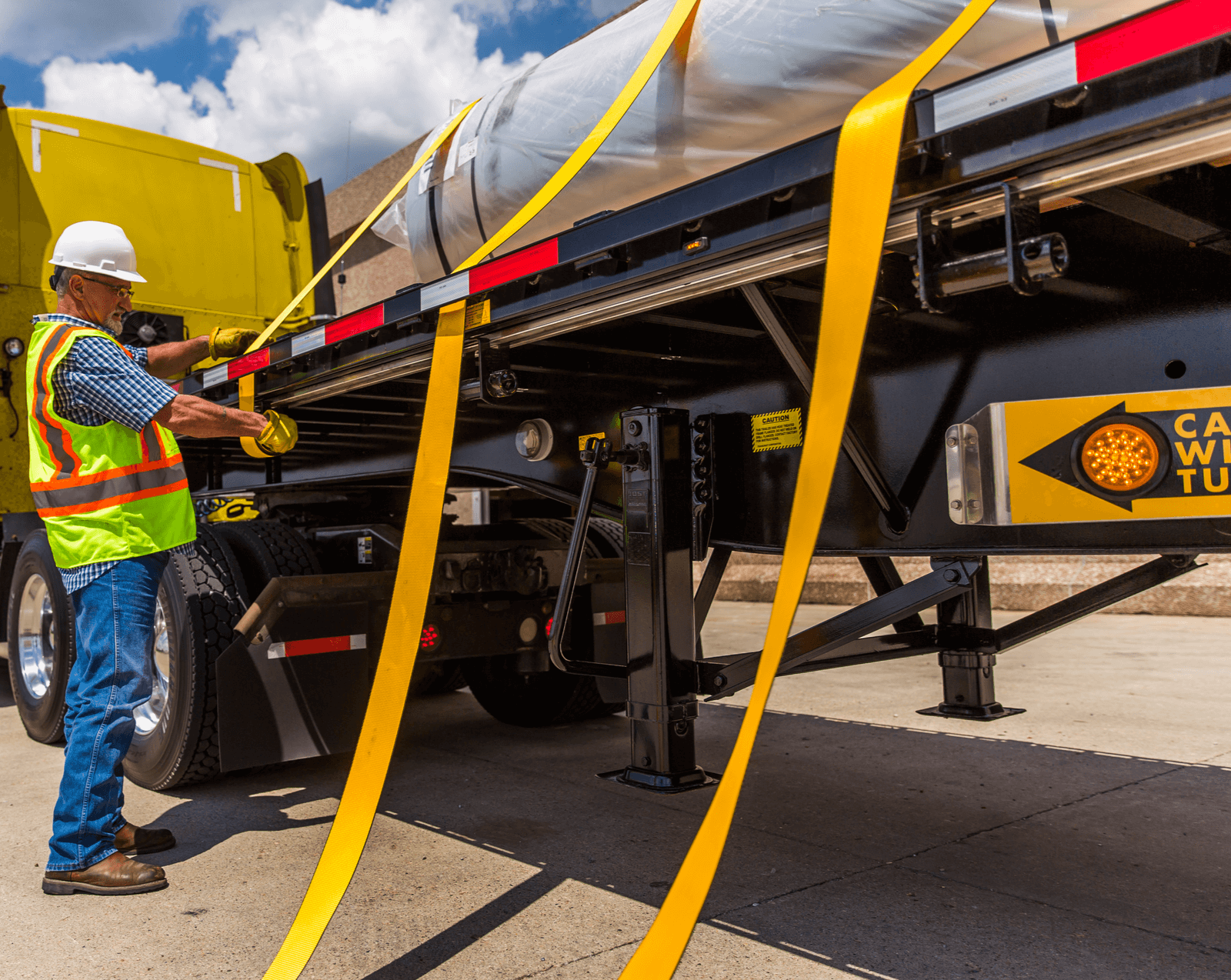

The interlocking apitong floor system uses two grade-8 floor screws at each crossmember. This double-shear connection reduces racking and nailer damage, while the radius edges on the “C”-section siderail reduce winch strap wear. The steel rub rail with recessed grooves also protects conspicuity tape for longer-lasting performance.
Better Visibility.
The enhanced visibility lighting system includes three stop/tail/turn lamps and five dual-function side marker lights. These marker lights also serve as turn signals, improving motorist visibility and overall highway safety.
Superior Corrosion Resistance.
Every steel surface is 100% shot-blasted before priming and painting—eliminating the need for chemical pretreatments. From ultra high-zinc epoxy primer and galvanic coating to automotive-grade acrylic urethane paint, this trailer delivers unmatched corrosion resistance and higher resale value.
Steel Flatbed Specifications
| Category | Details |
|---|---|
| General |
Length: 28′–53′ Width: 96″ and 102″ |
| Beam Ratings |
554: 55,000 lb in 4′ / 60,000 lb in 10′ / 93,700 lb evenly distributed 654: 65,000 lb in 4′ / 70,000 lb in 10′ / 110,400 lb evenly distributed 734: 73,000 lb in 4′ / 80,000 lb in 10′ / 125,000 lb evenly distributed |
| 48′ Base Weights |
554: 10,796 lb 654: 10,999 lb 734: 11,596 lb |
| Main Beam Design |
• Fully welded flange and web joints • 50,000-PSI high-strength steel web • 100% automated continuous welds • Heat-treated flanges rated at 130,000 PSI • 24″ cross braces, 48″ knee braces • Lifetime main beam warranty |
| Front End Design |
• Steel front crossmember • Center-mount glad hands & 7-way panel • ¼″ steel coupler plate (SAE J133 tested) |
| Rear End Design |
• Three rear stake pockets • Horizontal bumper caps • Vertical dock bumpers (3-bolt) • DOT & Transport Canada compliant |
| Siderail Design |
• 5.5″ 10-gauge steel rails • Radius edges with recessed rub rail • Stake pockets on 24″ centers • Double pipe spools |
| Crossmembers & Floor |
• 80K high-tensile 4″ steel I-beams on 12″ centers • Interlocking apitong wood floor • 2 grade-8 screws per crossmember • Vertically welded siderail-to-crossmember connection |
| Undercarriage |
• K-bracing with angular gussets • Triangular truss suspension gussets • 121″ tandem widespread axle • Axle alignment, large bearings, “P” spindle ends |
| Electrical / Lights |
• Air/electric access via front plate • Below-deck routing • LED lights with 5 dual-function side markers • Enhanced visibility stop/turn system • ABS braking system |
| Finish & Preparation |
• 100% shot-blasted before assembly • No chemical pretreatment required • Zinc epoxy primer + galvanic coat • Acrylic urethane paint pre-assembly |
| Popular Options |
• Additional air/electric configs • Extra aluminum components • Specialized coil or floor packages • Alternate crossmember spacing • Custom bumper filler plates • Factory-installed bulkheads • Multiple axle/lift/sliding suspensions • Freight securement & storage solutions |
