Wabash Steel Drop Decks
Greater Load Flexibility. Longer Useful Life.
With some of the highest floor ratings in the industry, this trailer design offers unmatched load flexibility. The main beam comes standard with a limited lifetime warranty and provides a stronger web-to-flange attachment for long-life performance. Potential corrosion is eliminated by welding high-tensile steel at all flange-web joints, ensuring lasting strength and reliability.
Lower Maintenance. Increased Uptime.

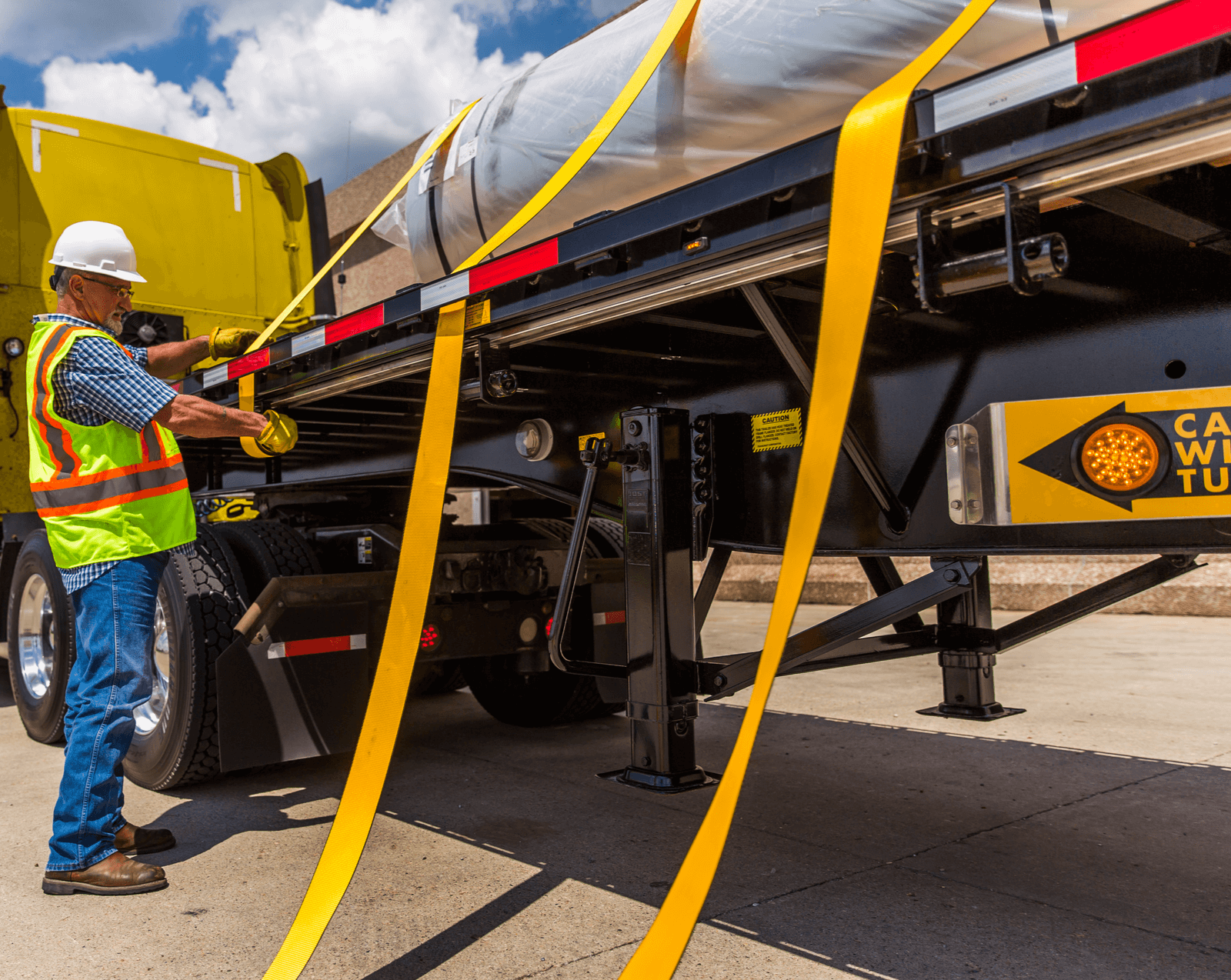

The interlocking apitong floor system connects with two grade-8 floor screws at each crossmember for superior hold and durability. The double-shear connection reduces racking and prevents damage around screw holes. Radius edges on the “C”-section siderail minimize winch strap wear, while the steel rub rail with recessed grooves protects conspicuity tape from damage.
Better Visibility.
The enhanced visibility lighting system includes three stop/tail/turn lights and five dual-function side marker lights. The side markers also operate as turn signals, improving highway visibility and safety for both drivers and surrounding motorists.
Superior Corrosion Resistance.
Every steel surface is 100% shot-blasted before primer and paint, eliminating the need for chemical pretreatments. From ultra high-zinc epoxy primer and galvanic coating to automotive-grade acrylic urethane paint, this trailer is engineered to resist corrosion and preserve resale value year after year.
Steel Drop Deck Specifications
Steel Drop Deck Trailer Specifications
| Category | Details |
|---|---|
| General |
Length: 28′–53′ Width: 96″ and 102″ Upper Deck: 10′ or 11′ |
| Beam Ratings |
554: 55,000 lb in 4′ / 60,000 lb in 10′ / 80,000 lb over lower deck 804: 80,000 lb in 4′ / 85,000 lb in 10′ / 94,000 lb over lower deck |
| Base Weights (48x102) |
554: 11,390 lb 804: 11,924 lb |
| Main Beam Design |
• Fully welded flange and web at all joints • High-strength 50,000 PSI steel web • 100% automated continuous weld • Heat-treated steel flanges (130,000 PSI) • Cross braces on 24″ centers, knee braces on 48″ centers • Lifetime main beam warranty |
| Front End Design |
• Steel front crossmember • Center-mount glad hands & 7-way access panel • ¼″ steel coupler plate tested to SAE J133 |
| Rear End Design |
• Three integral rear stake pockets • Horizontal bumper caps • Vertical rubber dock bumpers (3-bolt mount) • DOT and Transport Canada compliant |
| Siderail Design |
• 5.5″ 10-gauge steel for 4″ crossmembers • Radius edges with recessed rub rail • Stake pockets on 24″ centers • Double pipe spools |
| Crossmembers & Floor |
• 80K tensile, 4″ steel “I” beams on 12″ centers • Interlocking wood floor boards • 2 grade-8 screws per crossmember • Vertical welds at siderail-to-crossmember connections |
| Undercarriage |
• Suspension support gussets with triangular truss • 121″ tandem widespread axle • Parallel “P” spindle wheel ends, axle alignment, large bearings |
| Electrical / Lights |
• Access through removable front plate • Below-deck air and wire routing • LED system with 5 marker lights per side • Dual-function side markers as turn signals • ABS braking system |
| Preparation / Finishes |
• 100% shot blasted before assembly • No chemical pretreatment • Ultra high-zinc epoxy primer • Galvanic coated and urethane painted pre-assembly |
| Popular Options |
• Additional air/electric configurations • Aluminum components • Coil & floor packages • Custom crossmember spacing • Bumper filler plates • Bulkheads • Low deck option • Sliding & lift axles, alternate axle setups • Freight securement solutions |
